Integrated Feeding And Dosing System For Cable Compound Manufacturing

Brand Name: MACHTECH
Detail Information
Product Description
Detail Information
Place of Origin:
China
Capacity:
Depends On The Specific System And Customer Needs
Control System:
PLC
Installation:
On-site Installation By Professional Technicians
Safety Features:
Emergency Stop Button, Safety Interlock System
Material:
Stainless Steel
Operation Mode:
Automatic
Power Source:
Electricity
Product Type:
Industrial Equipment
Loading Method:
Pneumatic Or Mechanical
Maintenance:
Regular Maintenance Required For Optimal Performance
Unloading Method:
Gravity Or Pneumatic
Application:
Unloading Raw Materials From Trucks Or Containers
Conveying Distance:
Customizable
Conveying Speed:
Adjustable
Dust Collection System:
Included
Installation Method:
Fixed On Ground
Unloading Mode:
Automatic
Power Supply:
380V/50Hz
Conveying Method:
Pneumatic
Highlight:

Integrated Feeding And Dosing System

,

Cable Manufacturing Feeding And Dosing System

,

Material Feeding System For Cable Production

Product Description
Smart Factory-Ready Solution
Our integrated feeding and dosing system delivers automated, dust-free raw material handling for cable compound manufacturing. Combining high-accuracy weighing (±0.2%) with recipe-driven batching, this system ensures perfectly uniform PVC/XLPE formulations every time.
Key System Components
1. Centralized Material Feeding System

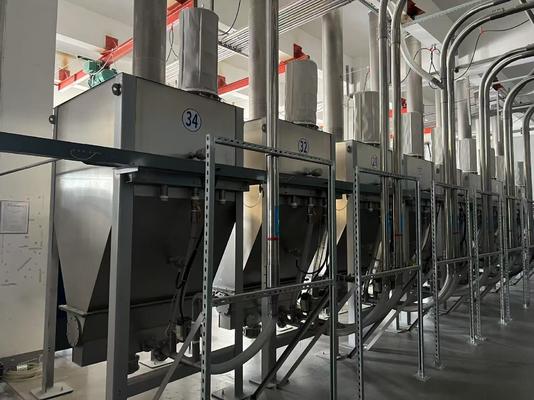

  • Multi-Storage Design - Bulk silos + intermediate hoppers for 20+ raw materials
  • Gentle Conveying - Low-speed pneumatic transport prevents filler degradation
  • Real-Time Inventory - Load cell monitoring with auto-replenishment alerts
  • Cross-Contamination Prevention - Dedicated lines for:
    • Base resins (PVC, PE)
    • Fillers (CaCO₃, clay)
    • Additives (plasticizers, stabilizers)

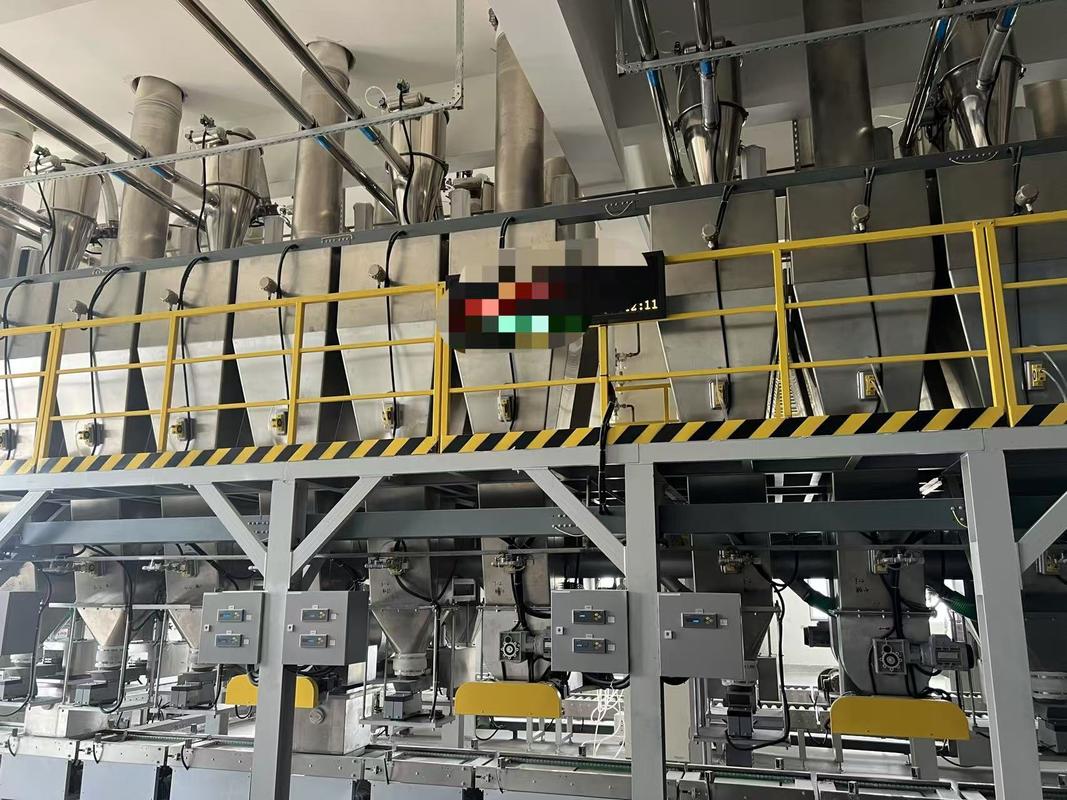

2. Automatic Batching & Weighing System
  • Gravimetric Dosing - Loss-in-weight feeders for 0.1-500kg/min throughput
  • Micro-Ingredient Handling - Precision screws for flame retardants, pigments
  • Smart Recipe Management - PLC stores 100+ formulations with:
    • Batch history tracking
    • RFID material verification
    • Deviation alarms
Why Cable Producers Choose Us?
✓ 60% Faster Batch Changeovers vs manual systems
✓ <0.5% Formulation Error - Meets strict cable industry specs
✓ Explosion-Proof - ATEX Zone 22 compliant for flammable dusts
✓ Zero Dust Emission - OSHA-compliant containment
Typical Applications:
  • Power cable insulation compounds
  • LSZH/low-smoke formulations
  • Recycled content modification
