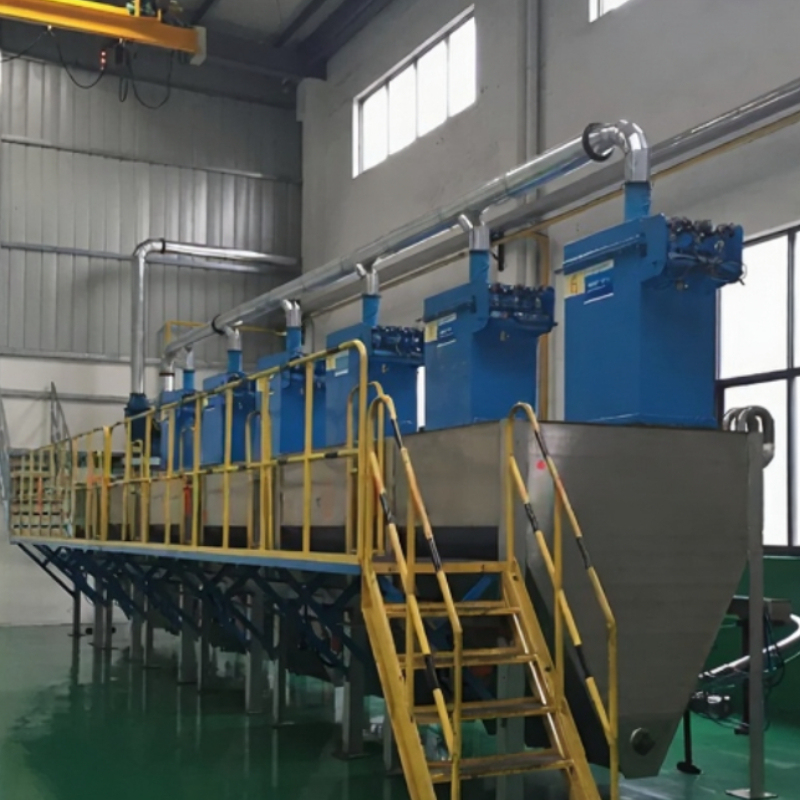

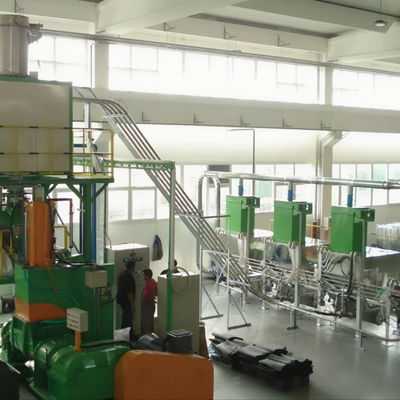

PLC Control Automatic Carbon Black Batching Machine For Rubber Processing

Brand Name:	MACHTECH
Price:	US$100,000.00 - 250,000.00
Payment Terms:	MoneyGram,Western Union,T/T,D/P,D/A,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO

Capacity:

Depends On The Specific System And Customer Needs

Control System:

PLC

Installation:

On-site Installation By Professional Technicians

Safety Features:

Emergency Stop Button, Safety Interlock System

Material:

Stainless Steel

Operation Mode:

Automatic

Power Source:

Electricity

Product Type:

Industrial Equipment

Loading Method:

Pneumatic Or Mechanical

Maintenance:

Regular Maintenance Required For Optimal Performance

Unloading Method:

Gravity Or Pneumatic

Application:

Unloading Raw Materials From Trucks Or Containers

Conveying Distance:

Customizable

Conveying Speed:

Adjustable

Dust Collection System:

Included

Installation Method:

Fixed On Ground

Unloading Mode:

Automatic

Power Supply:

380V/50Hz

Conveying Method:

Pneumatic

Packaging Details:

STANDARD SEAWORTHY PACKAGING

Highlight:

automatic carbon black batching machine

rubber processing carbon black batching machine

Product Description

Rubber Processing Machine Automatic Carbon Black Small Medicine Batching Machine

Main Technical Parameters

Parameter	Specification
Powder scale weighing range	≤200 Kgs
Oil scale weighing range	1-50 Kgs
Powder weighing accuracy	Static≤±0.1% F.S, dynamic≤±0.2% F.S.
Oil weighing accuracy	Static≤±0.1% F.S, dynamic≤±0.2% F.S.
Conveying capacity	1-1500Kg/h
Transmission distance	Horizon≤80m; Vertical≤20m
Pipe diameter	DN50-100
Air source	Root's Blower

Key Features

Suitable for banbury capacity from 55L to 160L
Compatible with 1-story or 2-storey factory buildings, reducing construction costs
Handles storage, conveyance, weighing and dosing of carbon black, white fillers, and oils
Separate storage and production areas
Integrated system with mixer upstream equipment, banbury, and rubber scale in one program
Enables production automation and management information systemization
Ideal for rubber products, plastic products, shoes, rubber cable materials, and chemical materials

Why use this system?

This advanced system incorporates technologies from Germany and Britain, developed by our R&D team. Our Automatic Batching System includes conveying, storage, weighing, batching and feeding systems for powders, pellets, bulk materials, and liquids, serving rubber, cable polymer, silicone, friction materials, and plastics industries.

The system is compatible with various mixer types and consists of five sections: Powder, Oil, Bulk material, Dust removal, and full control system. The integrated management and control system combines information technology with production management, enabling complete process control, production planning, material management, and quality tracking.

Through continuous innovation, this system has proven effective in improving management levels, product quality, and stability, earning recognition from domestic and international customers.
