Automated Material Handling Solution
>
Fully Automatic Weighing Dosing Batching Machine For Rubber Shoe Industry

Fully Automatic Weighing Dosing Batching Machine For Rubber Shoe Industry

Brand Name: MACHTECH
Price: US$300,000.00 - 500,000.00
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Detail Information
Place of Origin:
China
Certification:
ISO, CE
Structure:
Central Dust Collection
Capacity:
Depends On The Specific System And Customer Needs
Control System:
PLC
Installation:
On-site Installation By Professional Technicians
Safety Features:
Emergency Stop Button, Safety Interlock System
Material:
Stainless Steel
Operation Mode:
Automatic
Power Source:
Electricity
Product Type:
Industrial Equipment
Loading Method:
Pneumatic Or Mechanical
Maintenance:
Regular Maintenance Required For Optimal Performance
Unloading Method:
Gravity Or Pneumatic
Application:
Unloading Raw Materials From Trucks Or Containers
Conveying Distance:
Customizable
Conveying Speed:
Adjustable
Dust Collection System:
Included
Installation Method:
Fixed On Ground
Unloading Mode:
Automatic
Power Supply:
380V/50Hz
Conveying Method:
Pneumatic
Packaging Details:
Standard Seaworthy Packaging
Highlight:

fully automatic rubber batching machine

,

weighing dosing batching machine for rubber

,

shoe industry batching weighing system

Product Description

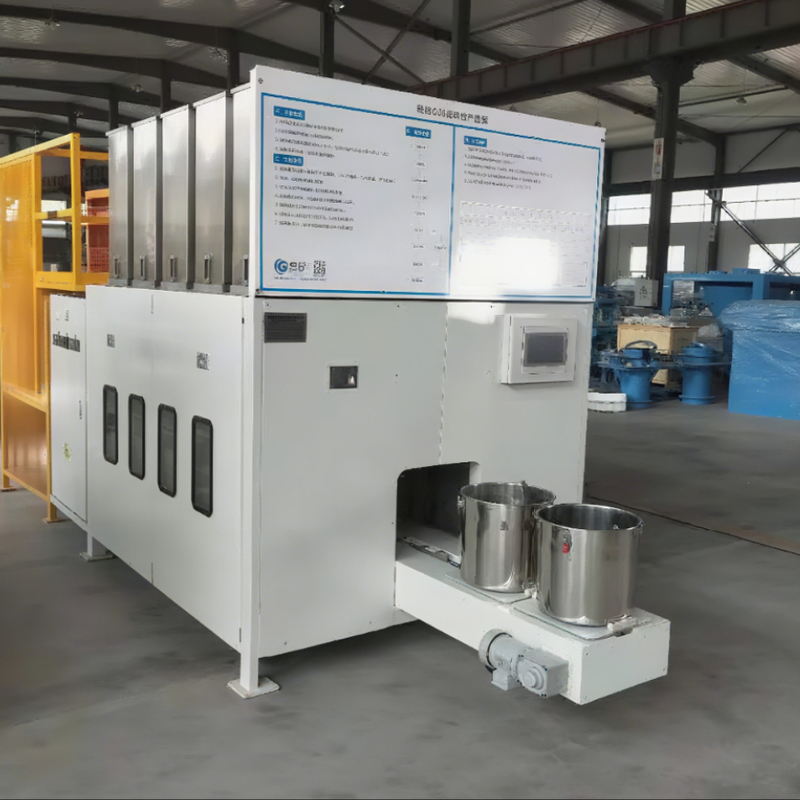

Fully Automatic Chemical Weighing Dosing Batching Machine for Shoe Industry
Product Attributes
Attribute Value
Structure Central Dust Collection
Technical Specifications
Number of applicable dosing chemicals 6 & 10 & 12 & 14 kinds
Weighing range of electronic scale 0.05-25kgs
Weighing accuracy (static) ≤±0.1% F.S
Weighing accuracy (dynamic) ≤±0.15% F.S
Weighing accuracy (accumulative) ≤±0.2% F.S
Gradient of weighing display instrument 1g, 2g, 5g
Dosing cycle time and productivity 120-200 bags/shift
Dust contents in tail air after dust removal ≤10mg/m³
System equipment noise <75dB
Installed capacity 5-10kW/Set
Key Features
  • Remote management and control capability with after-sales support
  • High-resolution electronic scale and weighing instruments for superior accuracy
  • Multi-station simultaneous weighing with high productivity (120-200 bags/shift)
  • Premium imported components ensure stability and reliability
  • Field bus working system with automatic diagnostics and troubleshooting prompts
  • Bilingual Chinese-English interface with multi-area process visualization
  • Automatic system monitoring with alarm location for abnormalities
  • Energy-efficient design with safety interlocking protection
  • Optimized dust removal system with bag filters for clean operation
  • Versatile compatibility with 6-14 different chemicals for shoe industry applications
Why use this system?
Our Smart and High Precision Chemical Batching System incorporates advanced Japanese and German technologies for precise dosing of granular, powder, and flake materials. The system features multiple feeding methods (electromagnetic vibrator, single screw feeder, belt conveyor) with continuous stepless speed regulation. Dual electronic scales provide automatic control of the weighing process to ensure uniform batching accuracy. The complete environmental protection system makes it ideal for rubber, cable polymers, silicone, plastics, and pigment industries.
