Customized Rubber Kneader Batching System Industrial Batching And Weighing Machine

Brand Name:	MACHTECH
Price:	US$100,000.00 - 250,000.00
Payment Terms:	MoneyGram,Western Union,T/T,D/P,D/A,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Structure:

Chemical Weighing

Type:

Customized

Capacity:

Depends On The Specific System And Customer Needs

Control System:

PLC

Installation:

On-site Installation By Professional Technicians

Safety Features:

Emergency Stop Button, Safety Interlock System

Material:

Stainless Steel

Operation Mode:

Automatic

Power Source:

Electricity

Product Type:

Industrial Equipment

Loading Method:

Pneumatic Or Mechanical

Maintenance:

Regular Maintenance Required For Optimal Performance

Unloading Method:

Gravity Or Pneumatic

Application:

Unloading Raw Materials From Trucks Or Containers

Conveying Distance:

Customizable

Conveying Speed:

Adjustable

Dust Collection System:

Included

Installation Method:

Fixed On Ground

Unloading Mode:

Automatic

Power Supply:

380V/50Hz

Conveying Method:

Pneumatic

Packaging Details:

Standard Seaworthy Packaging

Highlight:

customized rubber kneader system

industrial rubber batching weighing machine

Product Description

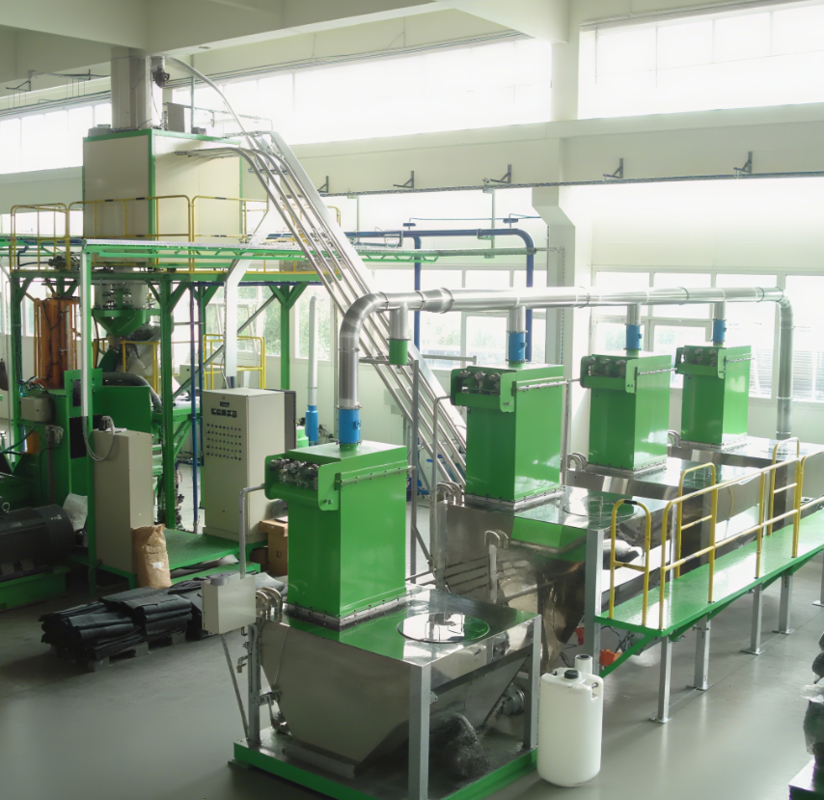

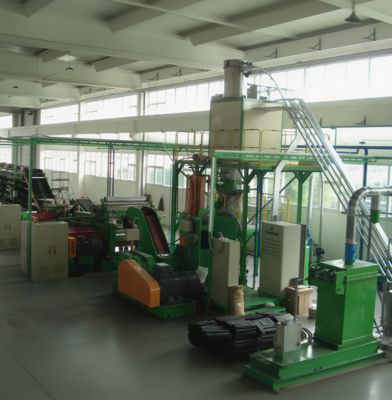

Rubber Kneader Batching System Automatic Batching and Weighing Machine

Product Specifications

Attribute	Value
Structure	Chemical Weighing
Type	Customized

Technical Parameters

Powder scale weighing range	≤200 Kgs
Oil scale weighing range	1-50 Kgs
Powder weighing accuracy	Static≤±0.1% F.S, dynamic≤±0.2% F.S.
Oil weighing accuracy	Static≤±0.1% F.S, dynamic≤±0.2% F.S.
Conveying capacity	1-1500Kg/h
Transmission distance	Horizon≤80m; Vertical≤20m
Pipe diameter	DN50-100
Air source	Root's Blower

Key Features

Designed for banbury capacity from 55L to 160L
Compatible with both single-story and two-story factory buildings, reducing construction costs
Manages storage, conveyance, weighing and dosing of key ingredients including carbon black, white fillers, and oils
Separates storage area from production area for improved workflow
Integrated system combining mixer upstream equipment, banbury, and rubber scale with online control
Enables production automation and management information systemization
Ideal for production of rubber products, plastic products, shoes, rubber cable materials, and chemical materials
