Dust Collection And Removal Control System For Rubber Powder Banbury Kneader

Dust Collection And Removal Control System For Rubber Powder Banbury Kneader

Brand Name: MACHTECH
Price: US$250,000.00 - 350,000.00
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO, CE
Type:
Customized
Capacity:
Depends On The Specific System And Customer Needs
Control System:
PLC
Installation:
On-site Installation By Professional Technicians
Safety Features:
Emergency Stop Button, Safety Interlock System
Material:
Stainless Steel
Operation Mode:
Automatic
Power Source:
Electricity
Product Type:
Industrial Equipment
Loading Method:
Pneumatic Or Mechanical
Maintenance:
Regular Maintenance Required For Optimal Performance
Unloading Method:
Gravity Or Pneumatic
Application:
Unloading Raw Materials From Trucks Or Containers
Conveying Distance:
Customizable
Conveying Speed:
Adjustable
Dust Collection System:
Included
Installation Method:
Fixed On Ground
Unloading Mode:
Automatic
Power Supply:
380V/50Hz
Conveying Method:
Pneumatic
Packaging Details:
Seaworthy Packing
Highlight:

dust collection and removal control system

,

removal control system for rubber powder

Product Description

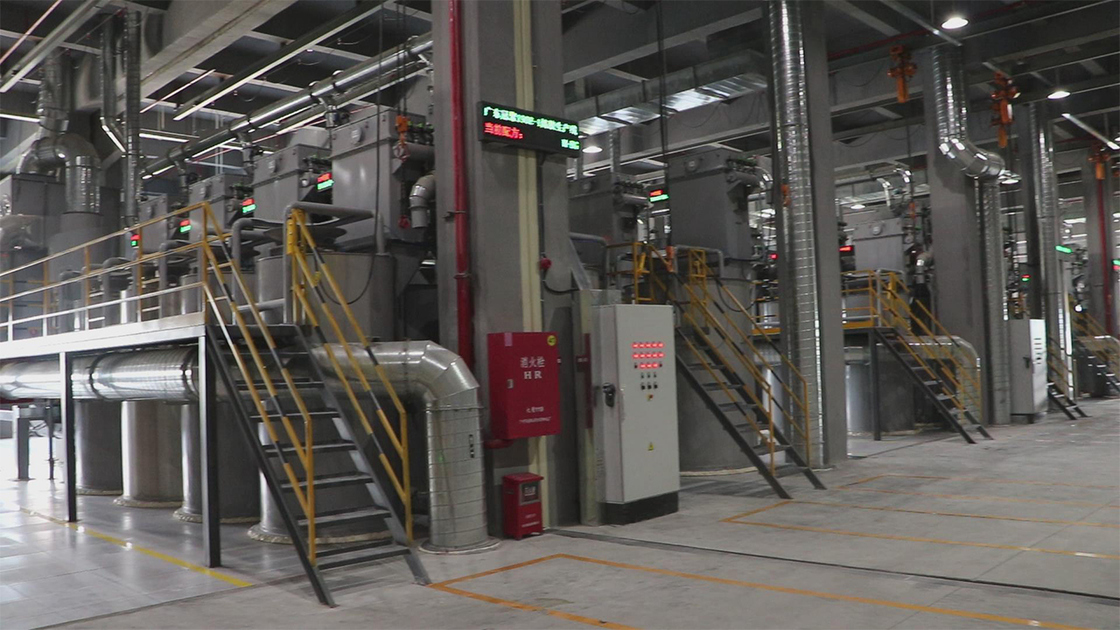

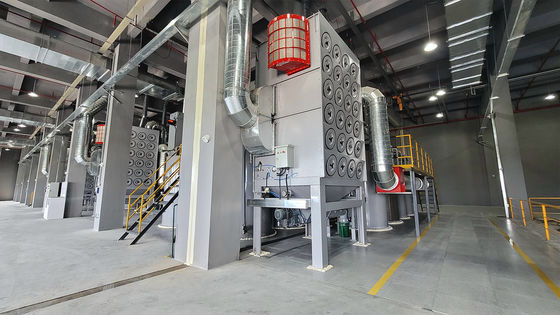

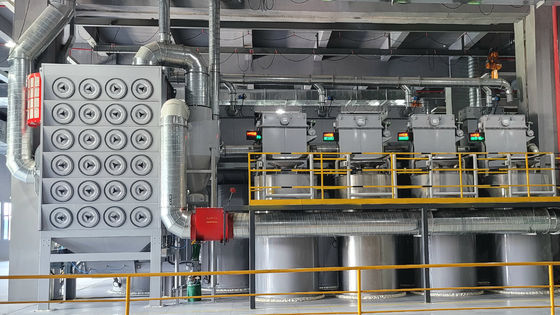

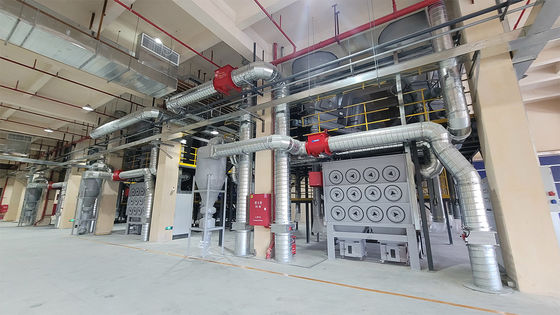

Dust Collection & Removal Control System for Rubber Powder Banbury Kneader
System Overview

Customized dust collection and removal control system designed specifically for rubber powder processing in Banbury kneaders, featuring comprehensive process management and monitoring capabilities.

Core Management Functions
  • Raw material management and tracking
  • Production scheduling and recipe management
  • Mixing process optimization
  • Real-time dynamic monitoring
  • Quality tracing and reporting
  • System alarm and fault diagnosis
  • Remote monitoring capability
Technical Specifications
Parameter Specification
Carbon black weighing range 30/50/200/200 kg
Oil weighing range 10/20/30/40/50 kg
Rubber weighing range 100/150/200/300/400 kg
Powder weighing accuracy Static ≤ ±0.1% F.S, Dynamic ≤ ±0.2% F.S.
Weighing cycle time ≤90-120s/batch
Oil injection pressure 2-6 MPa
Dust content in tail air ≤8mg/m³
System noise level <75dB
Installed capacity 50-100kW/set
Key System Features
  • Comprehensive process control with remote monitoring and after-sales support capabilities
  • Optimized mixing through integral calculation of time, temperature, energy, rotation speed and pressure parameters
  • High-precision weighing system using premium sensors and display instruments
  • Reliable performance with imported/JV company components
  • Bilingual Chinese-English interface with intuitive operation
  • Energy-efficient field bus working system with PLC substations
  • Automatic fault detection with alarm location and solution prompts
  • Advanced dust removal and recovery system for clean operation
  • Modern information technology integration for production management
  • Flexible design adaptable to various factory layouts (3-4 story buildings)
