Automated Plastic Industry Robotic Palletizing System With 4 Axis Articulated Arm

Brand Name:	MACHTECH

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO

Capacity:

Depends On The Specific System And Customer Needs

Control System:

PLC

Installation:

On-site Installation By Professional Technicians

Safety Features:

Emergency Stop Button, Safety Interlock System

Material:

Stainless Steel

Operation Mode:

Automatic

Power Source:

Electricity

Product Type:

Industrial Equipment

Loading Method:

Pneumatic Or Mechanical

Maintenance:

Regular Maintenance Required For Optimal Performance

Unloading Method:

Gravity Or Pneumatic

Application:

Unloading Raw Materials From Trucks Or Containers

Conveying Distance:

Customizable

Conveying Speed:

Adjustable

Dust Collection System:

Included

Installation Method:

Fixed On Ground

Unloading Mode:

Automatic

Power Supply:

380V/50Hz

Conveying Method:

Pneumatic

Highlight:

4 Axis Arm Automated Palletizing System

Plastic Industry Robotic Palletizing System

Plastic Industry Automatic Palletizing System

Product Description

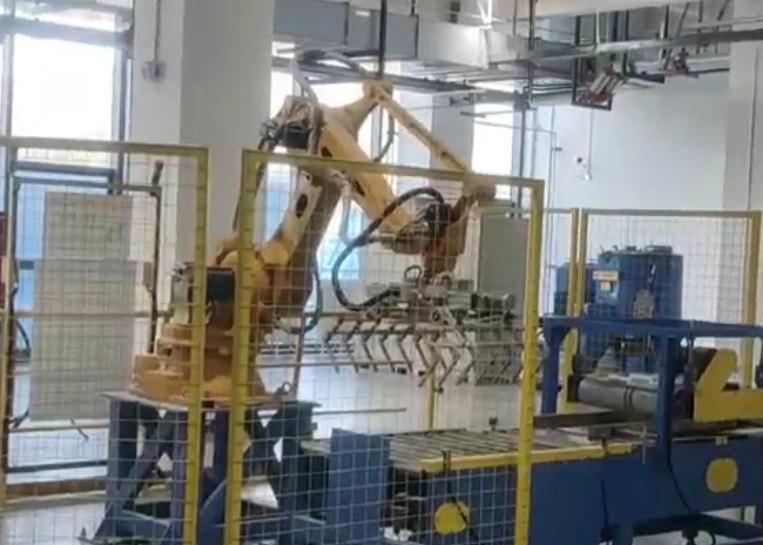

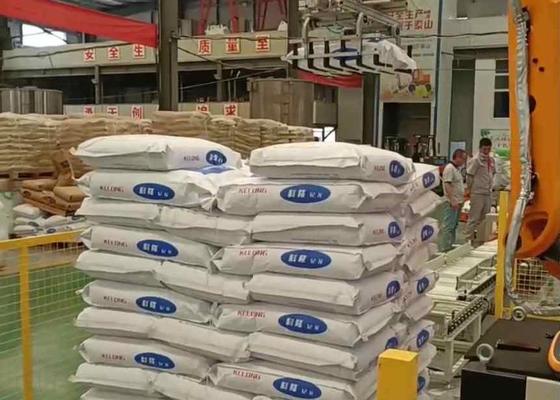

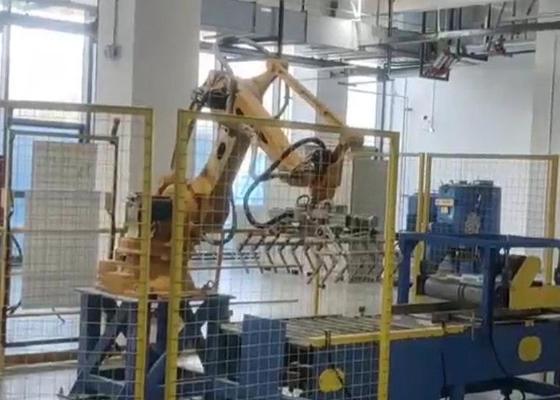

Robotic Palletizing System for Plastic

Certified Technical Specifications

Speed: 300 cycles/hour at 40kg payload (under specified conditions)
Repeat Positioning Accuracy: ± 0.5mm (tested per ISO 9283)
Mechanical Structure: 4-axis articulated arm with 3255mm rotation radius and 360° continuous rotation
Drive System: AC servo motor

Operating Conditions: Standard bag dimensions (600*400mm), perfect conveyor synchronization, and ideal temperature/humidity range required for optimal performance.

System Component Breakdown

Component	Technical Description	Notes
Robotic Arm	4-axis articulated design	Kawasaki brand confirmed
End Effector	Custom vacuum gripper	Mach Tech manufactured
Conveyor System	Bag flattening line: Vibratory leveling conveyor Incline conveyor: 15° climbing design Right-angle transfer: 90° bag rotation unit
Control System	Industrial PLC + HMI	Brand not specified
Safety Features	Full perimeter guarding	CE-compliant interlocks

Performance Limitations

Actual throughput may vary due to:

Non-standard bag dimensions
Material surface conditions
Maintenance cycle adherence

Compliance Statement

System meets fundamental CE Machinery Directive requirements. Final compliance certification requires:

On-site risk assessment
Client-specified RFID reader validation

Transparency Features

Clear Conditionality: All performance metrics include operating requirements
Component Provenance: Clearly labels OEM vs Mach Tech parts
Gap Disclosure: Notes unspecified parameters (e.g., PLC brand)
