Automatic Materials Weighing And Dosing System Solution For Plastic Industry

Brand Name:	MACHTECH

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO; CE

Capacity:

Depends On The Specific System And Customer Needs

Control System:

PLC

Installation:

On-site Installation By Professional Technicians

Safety Features:

Emergency Stop Button, Safety Interlock System

Material:

Stainless Steel

Operation Mode:

Automatic

Power Source:

Electricity

Product Type:

Industrial Equipment

Loading Method:

Pneumatic Or Mechanical

Maintenance:

Regular Maintenance Required For Optimal Performance

Unloading Method:

Gravity Or Pneumatic

Application:

Unloading Raw Materials From Trucks Or Containers

Conveying Distance:

Customizable

Conveying Speed:

Adjustable

Dust Collection System:

Included

Installation Method:

Fixed On Ground

Unloading Mode:

Automatic

Power Supply:

380V/50Hz

Conveying Method:

Pneumatic

Highlight:

Automatic Materials Weighing And Dosing System

Plastic Industry Weighing And Dosing System

Plastic Industry Dosing and Weighing Solutions

Product Description

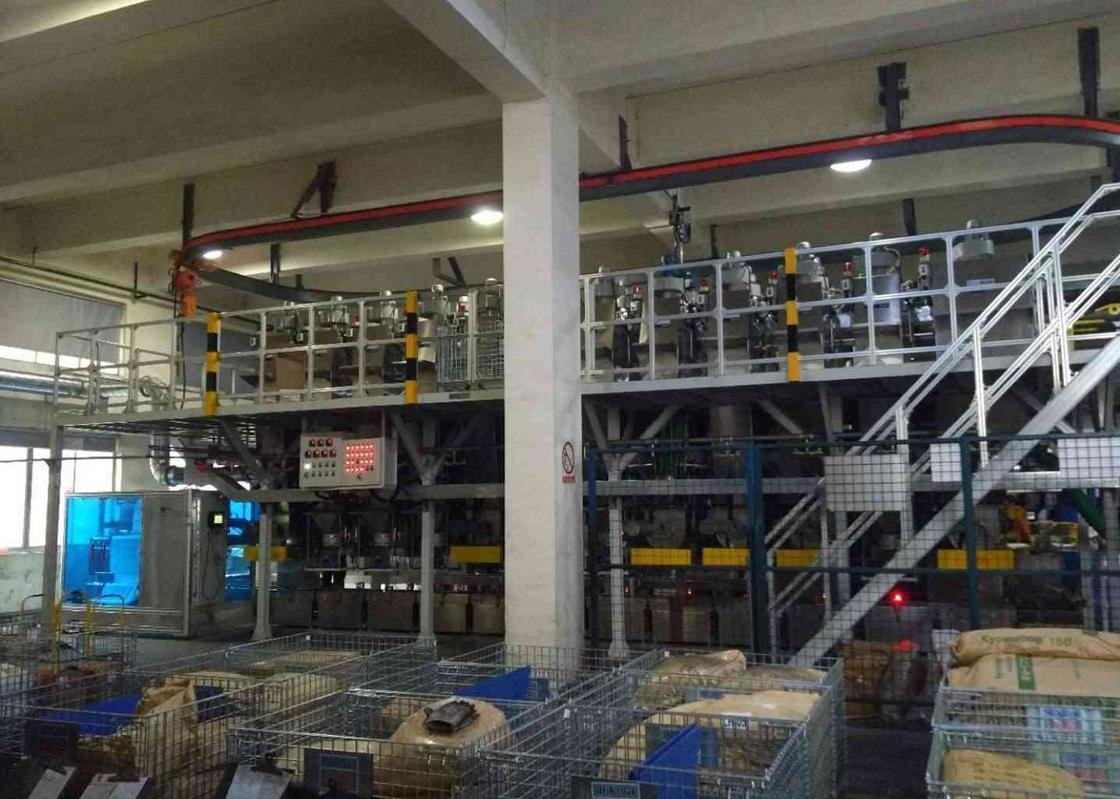

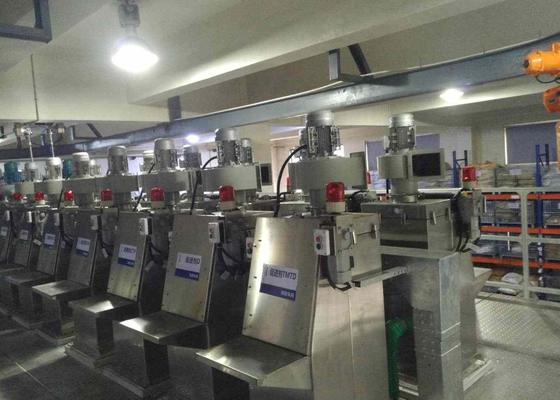

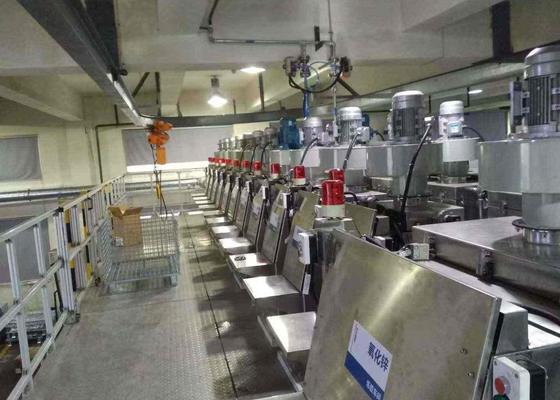

Materials Weighing and Dosing System for Plastic

Technical Specifications

Batch Range: 1-20kg
Accuracy: ±0.2% or ±2g (whichever is greater)
Throughput: 220-280 batches/8h (4-6 materials/batch, ≤5kg total)
Material Handling:
- Particle size: 0.1-15mm
- Hopper capacity: 100L (particles) / 150L (powders)
Feeding System:
- Single screw / vibratory feeder
- Belt conveyor for soft granules
Dust Control: Shared dust collector (18-40㎡ filtration)

Structural Details

Single-layer design
Total height: 3.5m (including operating space)
Platform height: 1.5m

Compliance

CE ISO 9001

Why use the system?

Our weighing and dosing system incorporates advanced German and British technologies, developed by our R&D team to handle powders, pellets, bulk materials, and liquids. The system features five integrated sections: powder handling, oil dosing, bulk material processing, dust removal, and a comprehensive control system. The intelligent control system combines production management with process automation, enabling quality tracking and maintaining product stability. Compatible with various mixers including banbury, kneader, and high-speed mixers, this system has gained international recognition for its reliability and performance in rubber, cable polymer, silicone, and plastic industries.

What is our purpose of service?

Mach Tech operates with a customer-centric approach, guided by principles of integrity, innovation, and mutual benefit. We combine standardized and custom designs to deliver cost-effective solutions that meet international quality standards. Our comprehensive technical management and quality assurance systems ensure products and services that consistently exceed customer expectations.
