6 Axis Robotic Arm Bag Unloading System PLC Control For PVC Industry

Brand Name:	MACHTECH

Detail Information

Product Description

Detail Information

Place of Origin:

China

Capacity:

Depends On The Specific System And Customer Needs

Control System:

Installation:

On-site Installation By Professional Technicians

Safety Features:

Emergency Stop Button, Safety Interlock System

Material:

Stainless Steel

Operation Mode:

Automatic

Power Source:

Electricity

Product Type:

Industrial Equipment

Loading Method:

Pneumatic Or Mechanical

Maintenance:

Regular Maintenance Required For Optimal Performance

Unloading Method:

Gravity Or Pneumatic

Application:

Unloading Raw Materials From Trucks Or Containers

Conveying Distance:

Customizable

Conveying Speed:

Adjustable

Dust Collection System:

Included

Installation Method:

Fixed On Ground

Unloading Mode:

Automatic

Power Supply:

380V/50Hz

Conveying Method:

Pneumatic

Highlight:

robotic bag unloading system for PVC

PVC Industry Bag Unloading System

Bag Unloading System PLC Control

Product Description

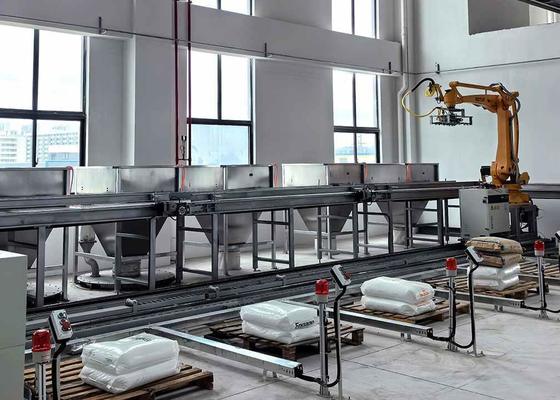

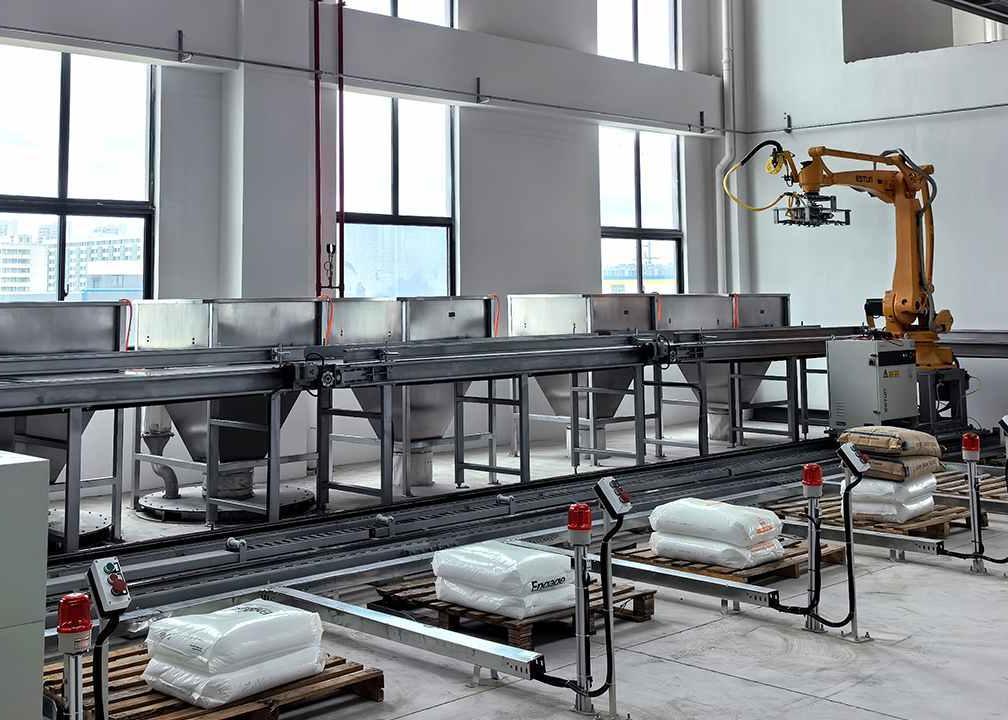

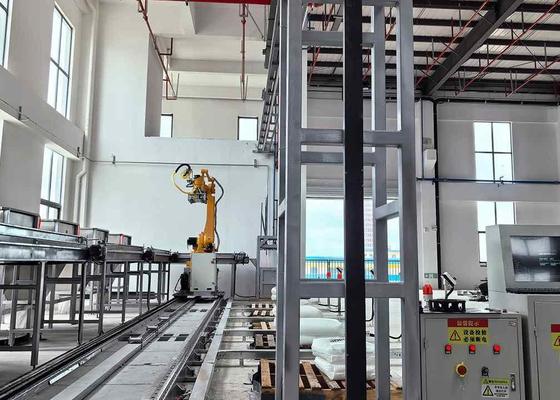

Robotic Bag Unloading System for PVC

Key Specifications

Throughput: ≥150 bags/h per unit (≥300 bags/h for 2-unit system)
Control: Industrial PLC with HMI interface
Material Contact: 304 stainless steel surfaces
Recognition:
- Mech-Mind 3D vision (sphere/position detection)
- RFID/QR code verification (client-specified reader)

System Configuration

Component	Brand/Spec
Robotic Arm (6-axis)	Kawasaki
Gripping Tool	Mach Custom Vacuum Cup
Safety System	Mach Perimeter Fencing
Waste Collection	Mach Integrated Bin

Technical Highlights

Dual-Cell Efficiency: Parallel processing doubles output
Bag Handling Modes:
- Full-pallet depalletizing
- Selective layer removal
- Single-bag precision pickup
Hygienic Design: SS304 construction, easy-clean surfaces

Plastics Industry Applications
