Automatic Dosing Mixing System and Pneumatic Conveying System for PVC Cable Extruder Line

Raw materials and additives → automatic batching → high-speed mixing → internal mixing → double-roll open refining → water cooling → drying → pelletizing → screening & magnetic separation → precise dosing → automatic packaging.

This process ensures excellent plasticization, uniform dispersion of additives, and superior pellet quality.

Raw materials and additives → automatic batching → high-speed mixing → cooling mixing → single-screw extrusion → hot-face cutting → air cooling → screening & magnetic separation → precise dosing → automatic packaging.

Designed for continuous production, this solution offers high output, stable operation, and consistent granule quality.

• Overhead crane system for efficient jumbo bag handling
• Dedicated loading hoppers for PVC resin and CaCO₃

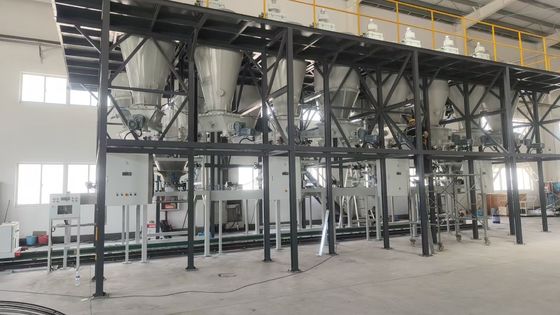

• Vacuum conveying hoppers with high-precision load cells
• Automatic liquid (oil) weighing and dosing system
• High-speed mixer combined with cooling mixer
• High-performance pelletizing unit

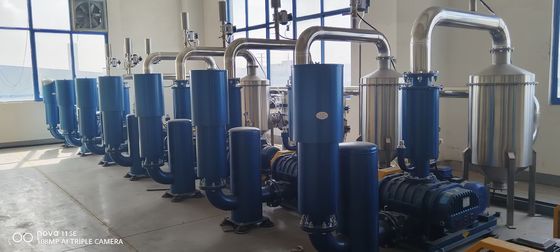

• Blower-based pneumatic conveying system
• Single-deck vibrating screen for effective separation

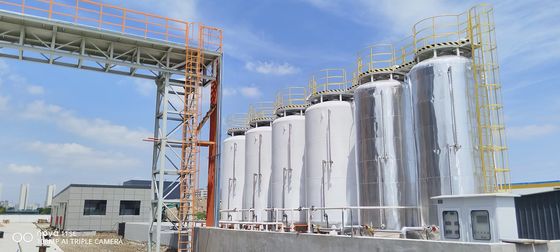

• Compound storage silos for finished materials
• Fully automatic packaging machine

The entire auto-compounding system is intelligently controlled and mainly includes the following stages:

1. Main material weighing system

This system is inspired by advanced Japanese and German technologies and introduced by our company. Our R&D team has independently developed the Smart High-Precision Chemical Batching System, designed for accurate dosing and batching of granular, powder, and flake materials. It is widely used in industries suchs as rubber, cable polymers, silicone, friction materials, plastics, and pigments.

The system supports multiple feeding methods, including electromagnetic vibrators, single or double screw feeders, belt conveyors, self-cleaning screw feeders, vibrating screw feeders, and continuous stepless speed-controlled smart devices. Multiple electronic scales operate independently to meet diverse user requirements, enabling automatic control and management of the material weighing and batching process while ensuring consistent and precise batching accuracy. The system also features comprehensive environmental protection measures and fully automated bag-making and material-handling equipment.

At MachTech, we adhere to a customer-centric approach, guided by the philosophy of “Integrity, Win-Win, and Innovation." Our mission is to deliver high-quality products and ensure customer satisfaction by providing cost-effective technical solutions.

Our product series combines standard and customized designs to meet diverse needs. With a robust technical management system, quality assurance, and customer service framework, the overall product quality and service reach international standards.

Founded in 1996, MachTech specializes in providing Industry 4.0 solutions, integrating software and equipment for manufacturing enterprises. We are a national high-tech enterprise developing and producing intelligent, eco-friendly automatic batching systems, 3D intelligent warehouses, smart logistics systems, information management software, and green equipment.

Headquartered in Zhongguancun Science and Technology Park, Haidian, Beijing, MachTech employs a professional team of 220 skilled and innovative professionals, including over 80 technical experts in R&D and design. We operate two production bases in Tianjin Baodi and Zhuozhou, with five offices across Hebei, Jiangsu, Guangdong, Chongqing, and Fujian.

Over the years, MachTech has been engaged in the R&D, manufacturing, installation, commissioning, training, sales, and after-sales service of intelligent batching systems. As of 2019, we hold 45 patents, 32 software copyrights, and 5 independent trademarks. We are certified under ISO9001:2015 (quality management), ISO14001:2015 (environmental management), and SGS-CE international safety standards.

MachTech is a council member of the National Rubber and Plastic Machinery Information Center, China Rubber Industry Association, China Friction and Seal Association, and China Warehousing and Transportation Association. By the end of 2019, we had delivered 1,470 intelligent automatic batching systems and 77 MES systems to 506 domestic and international clients.

Domestic market share: Over 75% of rubber products, 80% of conveyor belts, 90% of railway-use rubber, 70% of engineering rubber, 95% of plastic runways, and 75% of cable polymer materials. Our market spans more than 20 provinces and cities, and we export to Russia, Turkey, Croatia, Chile, Vietnam, Thailand, India, Myanmar, Iran, North Korea, Indonesia, Malaysia, Sri Lanka, South Korea, and other countries.

MachTech is a trusted supplier for Belt and Road Initiative projects, including the China-Laos Railway and Yawan Railway track conveyor lines. We also pioneered the first domestic high-speed iron powder metallurgy brake pad production line and the synthetic brake shoe production line for railway freight carriages in China.
