| Brand Name: | MACHTECH |
| Price: | US$200,000.00 - 450,000.00 |
| Payment Terms: | MoneyGram,Western Union,T/T,D/P,D/A,L/C |
| Attribute | Value |
|---|---|
| Structure | Vertical |
Rubber Mixer Upstream Equipment Automatic Weighing, Dosing, Batching System - Pneumatic Type
| Carbon black scale - weighing range | 30/50/200/200 Kgs |
| Oil scale - weighing range | 10/20/30/40/50 Kgs |
| Rubber scale - weighing range | 100/150/200/300/400 Kgs |
| Powder scale weighing accuracy | Static ≤ ±0.1% F.S, dynamic ≤ ±0.2% F.S. |
| Weighing cycle time | ≤90-120s/batch |
| Carbon black - pneumatic conveying capacity | 3-15t/h |
| Oil injection pressure | 2-6 Mpa |
| Oil conveying temperature | 0-85ºC |
| Processing oil injection, carbon black and major ingredients discharging cycle time | ≤20s |
| Dust contents in tail air after dust removal system | ≤8mg/m³ |
| System equipment noise | <75dB |
| Installed capacity | 50-100kW/set |
• Whole mixing process management and control, monitoring, recording, with remote monitoring and after-sales support to improve management level.
• Optimized rubber mixing through integral calculation and logic control of parameters including time, temperature, energy, rotation speed and pressure.
• High weighing accuracy achieved through high resolution sensors and weighing display instruments.
• Stable and reliable performance with imported or joint venture company components.
• Chinese-English interface with multi-area display, monitoring and control functions for easy operation.
• Energy efficient field bus working system with PLC substations.
• Automatic testing of running conditions with alarm location and solution prompts for easy maintenance.
• Optimized dust removal and recovery system for clean environment and minimal raw material waste.
• Modern information technology integrated with production management and mixing process.

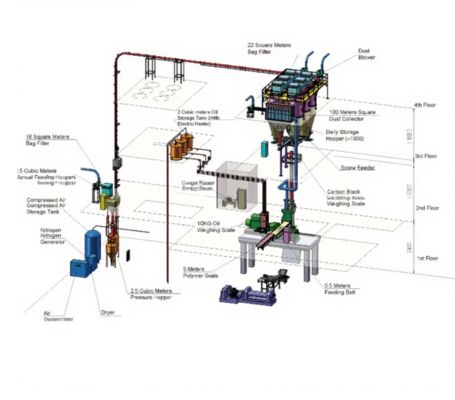

• Flexible system design adaptable to different factory building structures (3-4 story buildings) and process layouts.
