| Brand Name: | MACHTECH |
| Price: | US$200,000.00 - 450,000.00 |
| Payment Terms: | MoneyGram,Western Union,T/T,D/P,D/A,L/C |
| Structure | Chemical Weighing |
|---|---|
| Type | Customized |

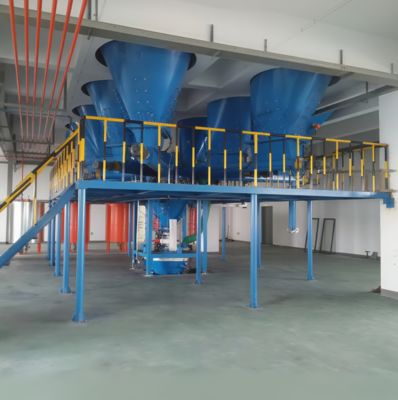

This PLC-controlled automatic batching machine provides comprehensive management of the entire mixing process with advanced features for carbon black weighing and material handling.
| Carbon black scale - weighing range | 30/50/200/200 Kgs |
| Oil scale - weighing range | 10/20/30/40/50 Kgs |
| Rubber scale - weighing range | 100/150/200/300/400 Kgs |
| Powder scale weighing accuracy | Static ≤ ±0.1% F.S, dynamic ≤ ±0.2% F.S. |
| Weighing cycle time | ≤90-120s/batch |
| Carbon black - pneumatic conveying capacity | 3-15t/h |
| Oil injection pressure | 2-6 Mpa |
| Oil conveying temperature | 0-85ºC |
| Processing cycle time | ≤20s |
| Dust contents in tail air | ≤8mg/m³ |
| System equipment noise | <75dB |
| Installed capacity | 50-100kW/set |
Whole mixing process management and control, monitoring, recording, realized remote monitoring and after-sales support, improved management level.
By the integral calculation and logic control of parameters of time, temperature, energy, rotation speed and pressure etc, an optimized rubber mixing is realized.
Using high resolution sensors and weighing display instruments, the weighing accuracy is very high.
All key elements and components are imported or from joint venture company famous products, with stability and reliability realized.
Open Chinese-English interface, enables the functions of multi-area display, monitoring and control for the system running process, easy and simple operation.
The field bus working system (i.e. setup of PLC substations) gives lower energy consumption.
Automatically tests the running conditions, gives out alarm location and prompts solutions as abnormalities occur, facilitating maintenance and service, there are safety interlocking measures ensuring safety and security.

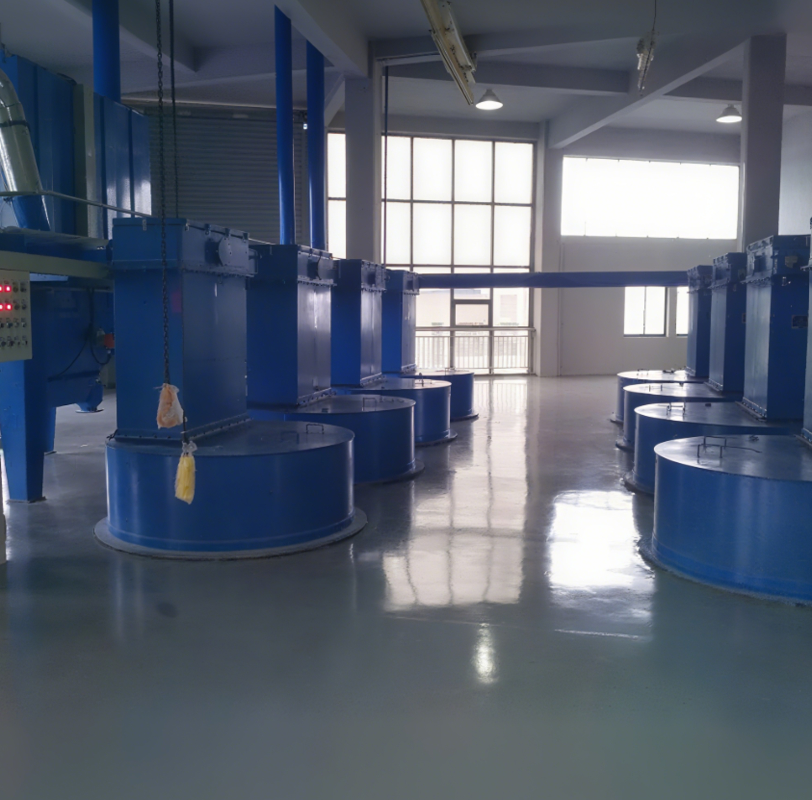

Optimized dust removal and recovery system design, makes good environment free of dust flying and leakage and free of raw material waste.
Within the system, its mixing engineering information managing system integrates the most modern information technology with the production management and the mixing process.
For different structures of factory buildings (3,4-story buildings) and process layout, a system design is made with flexible solution.
This system is based on advanced technologies from Germany and Britain, developed by our R&D department to include conveying, storage, weighing, batching and feeding systems for powders, pellets, bulk materials, and liquids. It's designed for rubber, cable polymer materials, silicone, friction materials, plastics and other industries.
The system consists of five main sections: Powder, Oil, Bulk material, Dust removal and fully control system. The full-process management and control system combines the latest information technology with production and process management, integrating production process control, production plan management, material management, and quality tracking management.
After years of continuous technological innovation and improvement, the system has been widely used domestically and internationally, improving management levels, product quality, and maintaining product stability.
