| Brand Name: | MACHTECH |
| Price: | US$200,000.00 - 450,000.00 |
| Payment Terms: | MoneyGram,Western Union,T/T,D/P,D/A,L/C |
| Attribute | Value |
|---|---|
| Structure | Chemical Weighing |
| Type | Customized |
The PLC Control System Carbon Black Weighing System Automatic Batching Machine provides comprehensive management and control of the entire mixing process with advanced features including:
| Carbon black scale - weighing range | 30/50/200/200 Kgs |
| Oil scale - weighing range | 10/20/30/40/50 Kgs |
| Rubber scale - weighing range | 100/150/200/300/400 Kgs |
| Powder scale weighing accuracy | Static ≤ ±0.1% F.S, dynamic ≤ ±0.2% F.S. |
| Weighing cycle time | ≤90-120s/batch |
| Carbon black - pneumatic conveying capacity | 3-15t/h |
| Oil injection pressure | 2-6 Mpa |
| Oil conveying temperature | 0-85ºC |
| Processing oil injection, carbon black and major ingredients discharging cycle time | ≤20s |
| Dust contents in tail air after dust removal system | ≤8mg/m³ |
| System equipment noise | <75dB |
| Installed capacity | 50-100kW/set |

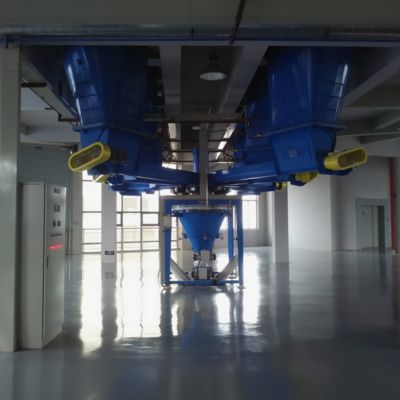

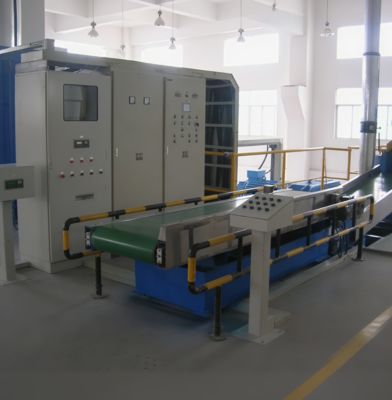

This system is based on advanced technologies from Germany and Britain, developed by our R&D department to include conveying, storage, weighing, batching and feeding systems for various materials (powders, pellets, bulk materials, liquids) used in rubber, cable polymer materials, silicone, friction materials, plastics and other industries.

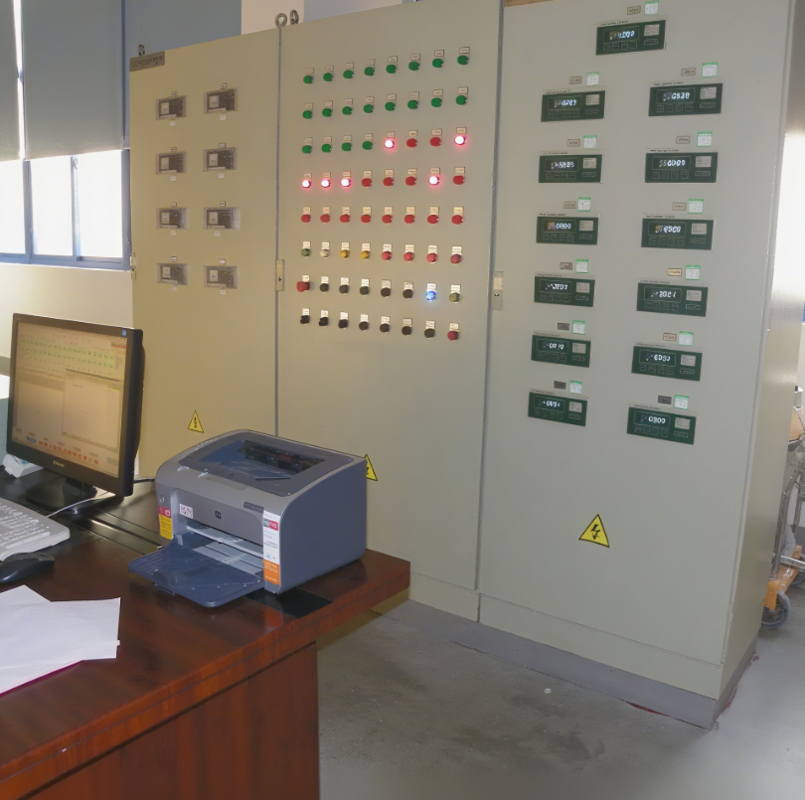

The system is compatible with various types of mixers (Banbury, kneader, high-speed) and consists of five main sections: Powder, Oil, Bulk material, Dust removal, and fully control system. The full-process management and control system combines the latest information technology with production and process management, integrating production process control, production plan management, material management, and quality tracking management to achieve true integration of management and control.
After years of continuous technological innovation and improvement, the system has been widely used domestically and internationally, improving management levels, product quality, and maintaining product stability.
